Electric motor specifications

Published power

• Peak: 42 kW1200 phase amps; 92 V

Published speed

• Maximum: 13,000 RPMShaft reference not specified

Rotor position

• Encoder

Temperature sensing

• Not published

Voltage, current and drivetrain

• KV: 105 (unit not stated)Shaft reference not specified · No explicit RPM/V unit is printed; winding selection remains required for a range.
• Peak current: 1,400 APhase current · Current amplitude convention not specified
• Continuous current: 600 APhase current · Current amplitude convention not specified · 35 Nm; duration and cooling test conditions not specified for this current claim

Limitations

• The SKU page states 105 KV; it is intentionally separate from the 95 KV family landing page.

Published power

• Manufacturer rated: 41 kWair cooled

Published speed

• Not published

Rotor position

• Encoder · NJDC 605

Temperature sensing

• Not published

Voltage, current and drivetrain

• KV: 87 (unit not stated)Shaft reference not specified · No explicit RPM/V unit is printed; winding selection remains required for a range.

Limitations

• The manufacturer page does not state a version or magnet height.

Published power

• Peak: 50 kWair cooled
• Continuous: 24 kWair cooled · 140 seconds

Published speed

• Not published

Rotor position

• Encoder · NJDC 605

Temperature sensing

• Not published

Voltage, current and drivetrain

• KV: 95 (unit not stated)Shaft reference not specified · No explicit RPM/V unit is printed; winding selection remains required for a range.

Limitations

• The landing page states 95 KV but does not state a version or magnet height; do not merge with SKU 4513.

Published power

• Manufacturer rated: 40 kW
• Continuous: 20.5 kWair cooled · 1,680 seconds
• Continuous: 32 kWair cooled · 140 seconds
• Burst: 52 kWair cooled · 10 seconds
• Continuous: 30 kWwater cooled · 1,680 seconds

Published speed

• Manufacturer rated: 12,000 RPMShaft reference not specified

Rotor position

• Encoder · NJDC 605

Temperature sensing

• Not published

Voltage, current and drivetrain

• KV: 85–90 (unit not stated)Shaft reference not specified · No explicit RPM/V unit is printed; winding selection remains required for a range.

Limitations

• The manufacturer page does not state a version or magnet height.

Published power

• Continuous: 23 kWHV; AC; S1; page 2 cooling requirements
• Continuous: 29 kWHV; LC; S1; page 2 cooling requirements
• Continuous: 33 kWHV; CC; S1; page 2 cooling requirements
• Peak: 60 kWHV; 6500 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 23 kWMV; AC; S1; page 2 cooling requirements
• Continuous: 29 kWMV; LC; S1; page 2 cooling requirements
• Continuous: 33 kWMV; CC; S1; page 2 cooling requirements
• Peak: 60 kWMV; 6500 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 23 kWLV; AC; S1; page 2 cooling requirements
• Continuous: 29 kWLV; LC; S1; page 2 cooling requirements
• Continuous: 33 kWLV; CC; S1; page 2 cooling requirements
• Peak: 60 kWLV; 6500 RPM; page 2 cooling/voltage requirements · 30 seconds

Published speed

• Limiting: 8,000 RPMShaft reference not specified · Main-table standard HV/MV/LV configurations; voltage may impose a lower operating speed.

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Voltage, current and drivetrain

• KV: 17.73 RPM/VMotor rotor · HV; no load
• Peak current: 190 APhase current · RMS · HV; page 2 conditions
• Continuous current: 100 APhase current · RMS · HV; LC
• KV: 29.58 RPM/VMotor rotor · MV; no load
• Peak current: 310 APhase current · RMS · MV; page 2 conditions
• Continuous current: 160 APhase current · RMS · MV; LC
• KV: 72.82 RPM/VMotor rotor · LV; no load
• Peak current: 900 APhase current · RMS · LV; page 2 conditions
• Continuous current: 400 APhase current · RMS · LV; LC

Limitations

• Current datasheet v1.7, standard HV/MV/LV configurations on page 2. Custom winding variants on page 3 require separate configuration records.
• Select the exact winding and cooling condition for every operating rating. Maximum column values are not shared defaults.
• Rated motor RPM is not published; limiting speed must not populate rated RPM.

Published power

• Continuous: 37 kWconfiguration and cooling dependent
• Peak: 60 kWat 6500 RPM · 120 seconds

Published speed

• Limiting: 8,000 RPMShaft reference not specified

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Limitations

• Historical datasheet v1.6. Resolver and encoder are separate offered configurations; no resolution or protocol is inferred.

Published power

• Continuous: 33 kWHV; AC; S1; page 2 cooling requirements
• Continuous: 47 kWHV; LC; S1; page 2 cooling requirements
• Continuous: 52 kWHV; CC; S1; page 2 cooling requirements
• Peak: 86 kWHV; 6000 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 33 kWMV; AC; S1; page 2 cooling requirements
• Continuous: 47 kWMV; LC; S1; page 2 cooling requirements
• Continuous: 52 kWMV; CC; S1; page 2 cooling requirements
• Peak: 86 kWMV; 6000 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 33 kWLV; AC; S1; page 2 cooling requirements
• Continuous: 47 kWLV; LC; S1; page 2 cooling requirements
• Continuous: 52 kWLV; CC; S1; page 2 cooling requirements
• Peak: 86 kWLV; 6000 RPM; page 2 cooling/voltage requirements · 30 seconds

Published speed

• Limiting: 7,000 RPMShaft reference not specified · Main-table standard HV/MV/LV configurations; voltage may impose a lower operating speed.

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Voltage, current and drivetrain

• KV: 15.53 RPM/VMotor rotor · HV; no load
• Peak current: 240 APhase current · RMS · HV; page 2 conditions
• Continuous current: 140 APhase current · RMS · HV; LC
• KV: 25.02 RPM/VMotor rotor · MV; no load
• Peak current: 400 APhase current · RMS · MV; page 2 conditions
• Continuous current: 220 APhase current · RMS · MV; LC
• KV: 64.01 RPM/VMotor rotor · LV; no load
• Peak current: 1,000 APhase current · RMS · LV; page 2 conditions
• Continuous current: 560 APhase current · RMS · LV; LC

Limitations

• Current datasheet v1.7, standard HV/MV/LV configurations on page 2. Custom winding variants on page 3 require separate configuration records.
• Select the exact winding and cooling condition for every operating rating. Maximum column values are not shared defaults.
• Rated motor RPM is not published; limiting speed must not populate rated RPM.

Published power

• Continuous: 56 kWconfiguration and cooling dependent
• Peak: 86 kWat 6000 RPM · 120 seconds

Published speed

• Limiting: 7,000 RPMShaft reference not specified

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Limitations

• Historical datasheet v1.6. Resolver and encoder are separate offered configurations; no resolution or protocol is inferred.

Published power

• Continuous: 48 kWHV; AC; S1; page 2 cooling requirements
• Continuous: 68 kWHV; LC; S1; page 2 cooling requirements
• Continuous: 75 kWHV; CC; S1; page 2 cooling requirements
• Peak: 104 kWHV; 4500 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 48 kWMV; AC; S1; page 2 cooling requirements
• Continuous: 68 kWMV; LC; S1; page 2 cooling requirements
• Continuous: 75 kWMV; CC; S1; page 2 cooling requirements
• Peak: 124 kWMV; 5500 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 48 kWLV; AC; S1; page 2 cooling requirements
• Continuous: 68 kWLV; LC; S1; page 2 cooling requirements
• Continuous: 75 kWLV; CC; S1; page 2 cooling requirements
• Peak: 124 kWLV; 5500 RPM; page 2 cooling/voltage requirements · 30 seconds

Published speed

• Limiting: 6,500 RPMShaft reference not specified · Main-table standard HV/MV/LV configurations; voltage may impose a lower operating speed.

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Voltage, current and drivetrain

• KV: 10.14 RPM/VMotor rotor · HV; no load
• Peak current: 235 APhase current · RMS · HV; page 2 conditions
• Continuous current: 120 APhase current · RMS · HV; LC
• KV: 15.53 RPM/VMotor rotor · MV; no load
• Peak current: 360 APhase current · RMS · MV; page 2 conditions
• Continuous current: 180 APhase current · RMS · MV; LC
• KV: 40.3 RPM/VMotor rotor · LV; no load
• Peak current: 920 APhase current · RMS · LV; page 2 conditions
• Continuous current: 470 APhase current · RMS · LV; LC

Limitations

• Current datasheet v1.7, standard HV/MV/LV configurations on page 2. Custom winding variants on page 3 require separate configuration records.
• Select the exact winding and cooling condition for every operating rating. Maximum column values are not shared defaults.
• Rated motor RPM is not published; limiting speed must not populate rated RPM.

Published power

• Continuous: 75 kWconfiguration and cooling dependent
• Peak: 124 kWat 5500 RPM · 120 seconds

Published speed

• Limiting: 6,500 RPMShaft reference not specified

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Limitations

• Historical datasheet v1.6. Resolver and encoder are separate offered configurations; no resolution or protocol is inferred.

Published power

• Continuous: 58 kWHV; AC; S1; page 2 cooling requirements
• Continuous: 82 kWHV; LC; S1; page 2 cooling requirements
• Continuous: 90 kWHV; CC; S1; page 2 cooling requirements
• Peak: 135 kWHV; 2400 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 64 kWMV; AC; S1; page 2 cooling requirements
• Continuous: 91 kWMV; LC; S1; page 2 cooling requirements
• Continuous: 101 kWMV; CC; S1; page 2 cooling requirements
• Peak: 210 kWMV; 4250 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 64 kWLV; AC; S1; page 2 cooling requirements
• Continuous: 91 kWLV; LC; S1; page 2 cooling requirements
• Continuous: 101 kWLV; CC; S1; page 2 cooling requirements
• Peak: 210 kWLV; 4250 RPM; page 2 cooling/voltage requirements · 30 seconds

Published speed

• Limiting: 4,500 RPMShaft reference not specified · Main-table standard HV/MV/LV configurations; voltage may impose a lower operating speed.

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Voltage, current and drivetrain

• KV: 5.83 RPM/VMotor rotor · HV; no load
• Peak current: 320 APhase current · RMS · HV; page 2 conditions
• Continuous current: 130 APhase current · RMS · HV; LC
• KV: 8.68 RPM/VMotor rotor · MV; no load
• Peak current: 500 APhase current · RMS · MV; page 2 conditions
• Continuous current: 220 APhase current · RMS · MV; LC
• KV: 23.56 RPM/VMotor rotor · LV; no load
• Peak current: 1,300 APhase current · RMS · LV; page 2 conditions
• Continuous current: 550 APhase current · RMS · LV; LC

Limitations

• Current datasheet v1.7, standard HV/MV/LV configurations on page 2. Custom winding variants on page 3 require separate configuration records.
• Select the exact winding and cooling condition for every operating rating. Maximum column values are not shared defaults.
• Rated motor RPM is not published; limiting speed must not populate rated RPM.

Published power

• Continuous: 117 kWconfiguration and cooling dependent
• Peak: 210 kWat 4500 RPM · 60 seconds

Published speed

• Limiting: 4,500 RPMShaft reference not specified

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Limitations

• Historical datasheet v1.6, recovered from the manufacturer archive. Resolver/encoder offerings are separate; current 268-C v1.7 is a distinct record.

Published power

• Continuous: 54 kWHV; AC; S1; page 2 cooling requirements
• Continuous: 77 kWHV; LC; S1; page 2 cooling requirements
• Continuous: 85 kWHV; CC; S1; page 2 cooling requirements
• Peak: 112 kWHV; 1340 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 84 kWMV; AC; S1; page 2 cooling requirements
• Continuous: 120 kWMV; LC; S1; page 2 cooling requirements
• Continuous: 132 kWMV; CC; S1; page 2 cooling requirements
• Peak: 174 kWMV; 2080 RPM; page 2 cooling/voltage requirements · 30 seconds
• Continuous: 112 kWLV; AC; S1; page 2 cooling requirements
• Continuous: 160 kWLV; LC; S1; page 2 cooling requirements
• Continuous: 176 kWLV; CC; S1; page 2 cooling requirements
• Peak: 340 kWLV; 4000 RPM; page 2 cooling/voltage requirements · 30 seconds

Published speed

• Limiting: 4,500 RPMShaft reference not specified · Main-table standard HV/MV/LV configurations; voltage may impose a lower operating speed.

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Voltage, current and drivetrain

• KV: 3.18 RPM/VMotor rotor · HV; no load
• Peak current: 375 APhase current · RMS · HV; page 2 conditions
• Continuous current: 150 APhase current · RMS · HV; LC
• KV: 4.92 RPM/VMotor rotor · MV; no load
• Peak current: 570 APhase current · RMS · MV; page 2 conditions
• Continuous current: 230 APhase current · RMS · MV; LC
• KV: 13.18 RPM/VMotor rotor · LV; no load
• Peak current: 1,500 APhase current · RMS · LV; page 2 conditions
• Continuous current: 550 APhase current · RMS · LV; LC

Limitations

• Current datasheet v1.7, standard HV/MV/LV configurations on page 2. Custom winding variants on page 3 require separate configuration records.
• Select the exact winding and cooling condition for every operating rating. Maximum column values are not shared defaults.
• Rated motor RPM is not published; limiting speed must not populate rated RPM.

Published power

• Continuous: 145 kWconfiguration and cooling dependent
• Peak: 340 kWat 3250 RPM · 30 seconds

Published speed

• Limiting: 3,250 RPMShaft reference not specified

Rotor position

• Resolver
• Encoder

Temperature sensing

• Silicon PTC · KTY81/210

Limitations

• Historical datasheet v1.6. Resolver and encoder are separate offered configurations; no resolution or protocol is inferred.

Published power

• Manufacturer rated: 6 kW

Published speed

• Manufacturer rated: 1,950 RPMShaft reference not specified
• Maximum: 3,600 RPMShaft reference not specified

Rotor position

• Encoder

Temperature sensing

• Not published

Voltage, current and drivetrain

• Operating voltage: 72 VMotor specification · The table labels Voltage, not Rated Voltage.
• Rated current: 92 ACircuit not specified · Current amplitude convention not specified · The table does not label the rated current as battery/line or phase.
• Maximum current: 400 APhase current · Current amplitude convention not specified · Maximum current duration 30 seconds

Limitations

• Exact columns in the manufacturer specification table. HTM07K has 6 kW rated power despite the model number.
• No temperature sensor or encoder resolution/protocol is specified. Do not inherit generic HPM temperature claims.
• The capture date is not a model year. Other Golden Motor marketing pages mention different maximum speeds without identifying this table revision.

Published power

• Manufacturer rated: 11 kW

Published speed

• Manufacturer rated: 2,500 RPMShaft reference not specified
• Maximum: 4,000 RPMShaft reference not specified

Rotor position

• Encoder

Temperature sensing

• Not published

Voltage, current and drivetrain

• Operating voltage: 72 VMotor specification · The table labels Voltage, not Rated Voltage.
• Rated current: 170 ACircuit not specified · Current amplitude convention not specified · The table does not label the rated current as battery/line or phase.
• Maximum current: 800 APhase current · Current amplitude convention not specified · Maximum current duration 30 seconds

Limitations

• Exact columns in the manufacturer specification table. HTM07K has 6 kW rated power despite the model number.
• No temperature sensor or encoder resolution/protocol is specified. Do not inherit generic HPM temperature claims.
• The capture date is not a model year. Other Golden Motor marketing pages mention different maximum speeds without identifying this table revision.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• Not published

Voltage, current and drivetrain

• Internal reduction: 5:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• Not published

Voltage, current and drivetrain

• Internal reduction: 5:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B3450

Voltage, current and drivetrain

• Internal reduction: 29.9:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.
• This historical drawing does not establish equivalence to the current GW1 listing or its different effective-count claim.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B~3450

Limitations

• The direct-drive product page labels this value Magnetic Pole Pairs (Phaserunner); rotor-position hardware is not stated on that page.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B~3450

Limitations

• The direct-drive product page labels this value Magnetic Pole Pairs (Phaserunner); rotor-position hardware is not stated on that page.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B~3900

Limitations

• GMAC is geared. The stored value is the manufacturer's Magnetic Pole Pairs (Phaserunner) controller setting, not a claimed physical rotor pole-pair count.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B~3900

Limitations

• GMAC is geared. The stored value is the manufacturer's Magnetic Pole Pairs (Phaserunner) controller setting, not a claimed physical rotor pole-pair count.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• Not published

Voltage, current and drivetrain

• Internal reduction: 5:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• Not published

Voltage, current and drivetrain

• Internal reduction: 11:1Motor rotor to output shaft

Limitations

• Primary engineering document for the Grin-supplied Bafang configuration only, not a Bafang family default.
• The drawing explicitly distinguishes 8 physical pole pairs from 88 effective. Use the physical count for FarDriver; do not apply the gear ratio twice.
• The speed-pulse count and connector do not establish a rotor-position sensor model. No rated RPM or power is published in this drawing.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10k NTC B3400 · Conflicted — do not use
• NTC · 10K NTC B~3450 with 10K pullup · Conflicted — do not use

Voltage, current and drivetrain

• Internal reduction: 11:1Motor rotor to output shaft

Limitations

• Primary engineering document for the Grin-supplied Bafang configuration only, not a Bafang family default.
• The drawing explicitly distinguishes 8 physical pole pairs from 88 effective. Use the physical count for FarDriver; do not apply the gear ratio twice.
• The speed-pulse count and connector do not establish a rotor-position sensor model. No rated RPM or power is published in this drawing.
• Exact beta/combined speed-sensor circuit remains unresolved: the linked rev 1 drawing says B3400, whereas the current listing says approximately B3450 plus a 10K pullup. Neither is selected as a temperature profile.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• Not published

Voltage, current and drivetrain

• Internal reduction: 11:1Motor rotor to output shaft

Limitations

• Primary engineering document for the Grin-supplied Bafang configuration only, not a Bafang family default.
• The drawing explicitly distinguishes 8 physical pole pairs from 88 effective. Use the physical count for FarDriver; do not apply the gear ratio twice.
• The speed-pulse count and connector do not establish a rotor-position sensor model. No rated RPM or power is published in this drawing.

Published power

• Not published

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Voltage, current and drivetrain

• Internal reduction: 5:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B3450

Voltage, current and drivetrain

• Internal reduction: 4.83:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.
• Temperature and speed share the Z910 signal. A plain standalone NTC controller mapping is not established by this drawing.

Published power

• Not published

Published speed

• Not published

Rotor position

• Not published

Temperature sensing

• NTC · 10K NTC B3450

Voltage, current and drivetrain

• Internal reduction: 4.83:1Motor rotor to output shaft

Limitations

• Only the exact Grin-supplied drawing configuration is covered. No manufacturer-family inheritance.
• Physical pole pairs are explicitly printed alongside the effective geared value. Effective values may be rounded; neither count is derived from the other.
• No rated power or rated RPM is published. Connector and speed pulses do not supply missing rotor-position hardware specifications.
• Temperature and speed share the Z910 signal. A plain standalone NTC controller mapping is not established by this drawing.

Published power

• Manufacturer rated: 250 WEU/Eurasia; 100 RPM hill climb; manual section 5.4
• Manufacturer rated: 500 WCanada; just under 200 RPM hill climb; manual section 5.4
• Manufacturer rated: 740 WConflicted — do not use · USA; approximately 250 RPM; section 5.4 and specification table disagree
• Manufacturer rated: 750 WConflicted — do not use · USA; approximately 250 RPM; section 5.4 and specification table disagree

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• NTC · 10K NTC B~3450

Limitations

• The direct-drive product page labels this value Magnetic Pole Pairs (Phaserunner).
• USA rated-power statements conflict between 740 W in the table and 750 W in section 5.4. EU/Canada values retain their stated operating conditions.

Published power

• Manufacturer rated: 250 WEU/Eurasia; 100 RPM hill climb; manual section 5.4
• Manufacturer rated: 500 WCanada; just under 200 RPM hill climb; manual section 5.4
• Manufacturer rated: 740 WConflicted — do not use · USA; approximately 250 RPM; section 5.4 and specification table disagree
• Manufacturer rated: 750 WConflicted — do not use · USA; approximately 250 RPM; section 5.4 and specification table disagree

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• NTC · 10K NTC B~3450

Limitations

• The direct-drive product page labels this value Magnetic Pole Pairs (Phaserunner).
• USA rated-power statements conflict between 740 W in the table and 750 W in section 5.4. EU/Canada values retain their stated operating conditions.

Published power

• Manufacturer rated: 250 WEU/Eurasia; 100 RPM hill climb; manual section 5.4
• Manufacturer rated: 500 WCanada; just under 200 RPM hill climb; manual section 5.4
• Manufacturer rated: 740 WConflicted — do not use · USA; approximately 250 RPM; section 5.4 and specification table disagree
• Manufacturer rated: 750 WConflicted — do not use · USA; approximately 250 RPM; section 5.4 and specification table disagree

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• NTC · 10K NTC B~3450

Limitations

• The direct-drive product page labels this value Magnetic Pole Pairs (Phaserunner).
• USA rated-power statements conflict between 740 W in the table and 750 W in section 5.4. EU/Canada values retain their stated operating conditions.

Published power

• Not published

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• NTC · 10K NTC B~3450

Limitations

• The direct-drive product page labels this value Magnetic Pole Pairs (Phaserunner).

Published power

• Not published

Published speed

• Maximum: 5,000 RPMShaft reference not specified

Rotor position

• Not published

Temperature sensing

• Silicon PTC · KTY84-130

Voltage, current and drivetrain

• Operating voltage: 0–72 VController DC input
• Continuous current: 100 Aambiguous — do not use · Circuit not specified · Current amplitude convention not specified
• Continuous current: 80 Aambiguous — do not use · Phase current · Current amplitude convention not specified
• Peak current: 220 APhase current · Current amplitude convention not specified · 60 seconds

Limitations

• The source does not state a product version.
• The source does not state a magnet height.
• Sensor detail comes from the exact manufacturer drawing linked by the reviewed model page. A changed primary page or sensor claim blocks automatic reuse of this supplement.

Published power

• Not published

Published speed

• Maximum: 5,000 RPMShaft reference not specified

Rotor position

• Encoder · RLS RMB29AC01SS1

Temperature sensing

• Sensor present; type not published

Voltage, current and drivetrain

• Operating voltage: 0–72 VController DC input
• Continuous current: 120 Aambiguous — do not use · Circuit not specified · Current amplitude convention not specified
• Continuous current: 80 Aambiguous — do not use · Phase current · Current amplitude convention not specified
• Peak current: 220 APhase current · Current amplitude convention not specified · 60 seconds

Limitations

• The source does not state a product version.
• The source does not state a magnet height.
• Sensor detail comes from the exact manufacturer drawing linked by the reviewed model page. A changed primary page or sensor claim blocks automatic reuse of this supplement.

Published power

• Not published

Published speed

• Maximum: 5,000 RPMShaft reference not specified

Rotor position

• Not published

Temperature sensing

• Sensor present; type not published

Voltage, current and drivetrain

• Operating voltage: 0–96 VController DC input
• Continuous current: 80 ACircuit not specified · Current amplitude convention not specified
• Continuous current: 80 APhase current · Current amplitude convention not specified
• Peak current: 220 APhase current · Current amplitude convention not specified · 60 seconds

Limitations

• The source does not state a product version.
• The source does not state a magnet height.

Published power

• Not published

Published speed

• Limiting: 6,000 RPMShaft reference not specified

Rotor position

• Not published

Temperature sensing

• Silicon PTC · KTY84-130

Voltage, current and drivetrain

• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified
• Maximum current: 300 ACircuit not specified · Current amplitude convention not specified · 120 seconds
• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified

Limitations

• The source does not state a product version.
• The source does not state a magnet height.

Published power

• Not published

Published speed

• Limiting: 6,000 RPMShaft reference not specified

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY84-130

Voltage, current and drivetrain

• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified
• Maximum current: 300 ACircuit not specified · Current amplitude convention not specified · 120 seconds
• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified

Limitations

• The source does not state a product version.
• The source does not state a magnet height.

Published power

• Continuous: 6 kWS1 duty

Published speed

• Manufacturer rated: 4,000 RPMShaft reference not specified · S1 duty
• Limiting: 6,000 RPMShaft reference not specified

Rotor position

• Not published

Temperature sensing

• Silicon PTC · KTY84-130

Voltage, current and drivetrain

• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified
• Maximum current: 300 ACircuit not specified · Current amplitude convention not specified · 120 seconds
• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified

Limitations

• The source does not state a product version.
• The source does not state a magnet height.

Published power

• Continuous: 6 kWS1 duty

Published speed

• Manufacturer rated: 4,000 RPMShaft reference not specified · S1 duty
• Limiting: 6,000 RPMShaft reference not specified

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY84-130

Voltage, current and drivetrain

• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified
• Maximum current: 300 ACircuit not specified · Current amplitude convention not specified · 120 seconds
• Continuous current: 100 ACircuit not specified · Current amplitude convention not specified

Limitations

• The source does not state a product version.
• The source does not state a magnet height.

Published power

• Not published

Published speed

• Limiting: 6,000 RPMShaft reference not specified

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY84-130

Voltage, current and drivetrain

• Continuous current: 150 ACircuit not specified · Current amplitude convention not specified
• Maximum current: 450 ACircuit not specified · Current amplitude convention not specified · 120 seconds
• Continuous current: 150 ACircuit not specified · Current amplitude convention not specified

Limitations

• The source does not state a product version.
• The source does not state a magnet height.

Published power

• Manufacturer rated: 7 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

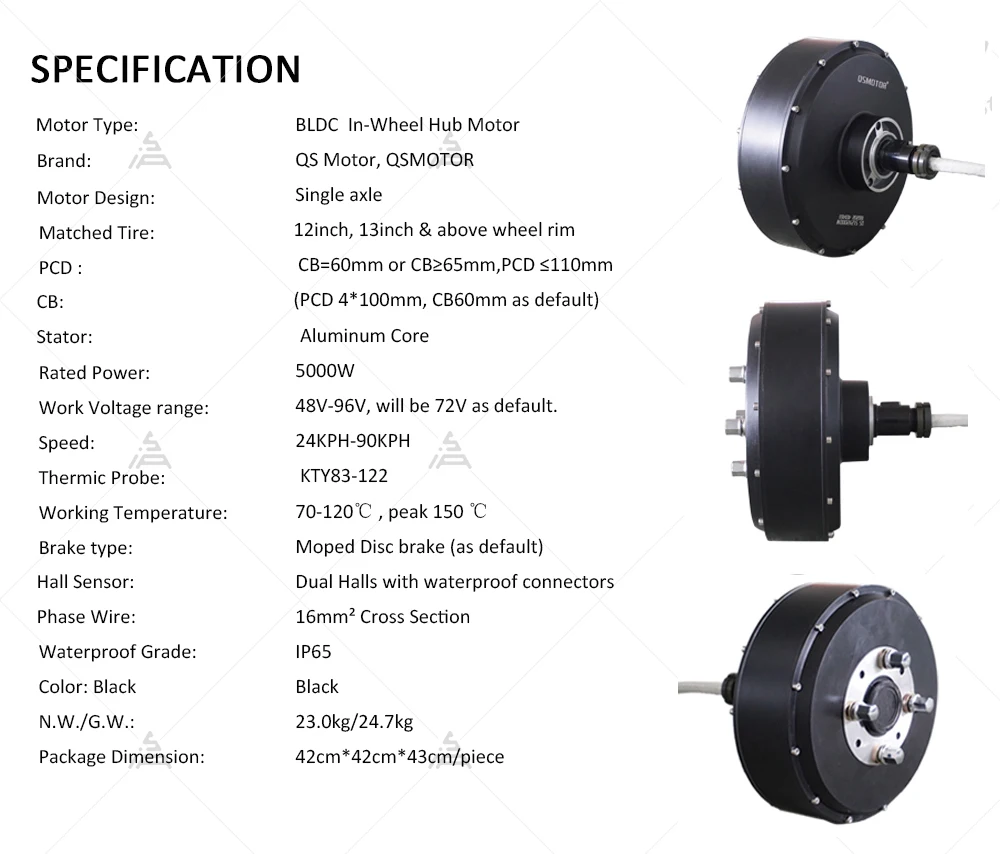

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Voltage, current and drivetrain

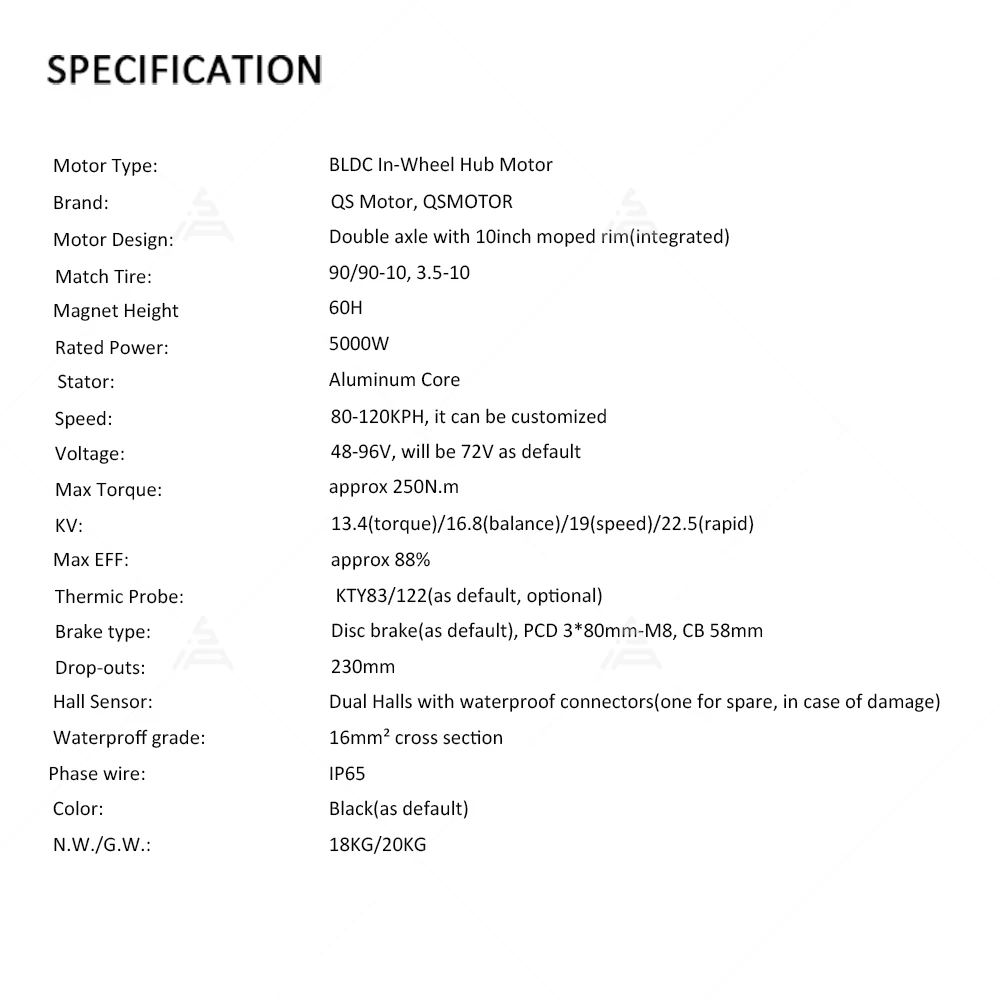

• KV: 13.4 / 16.8 / 19 / 22.5 (unit not stated)Shaft reference not specified · Select the ordered winding; shaft reference is not stated.

Limitations

• Table reverses the phase-wire and waterproof-grade row labels; do not import those rows.
• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

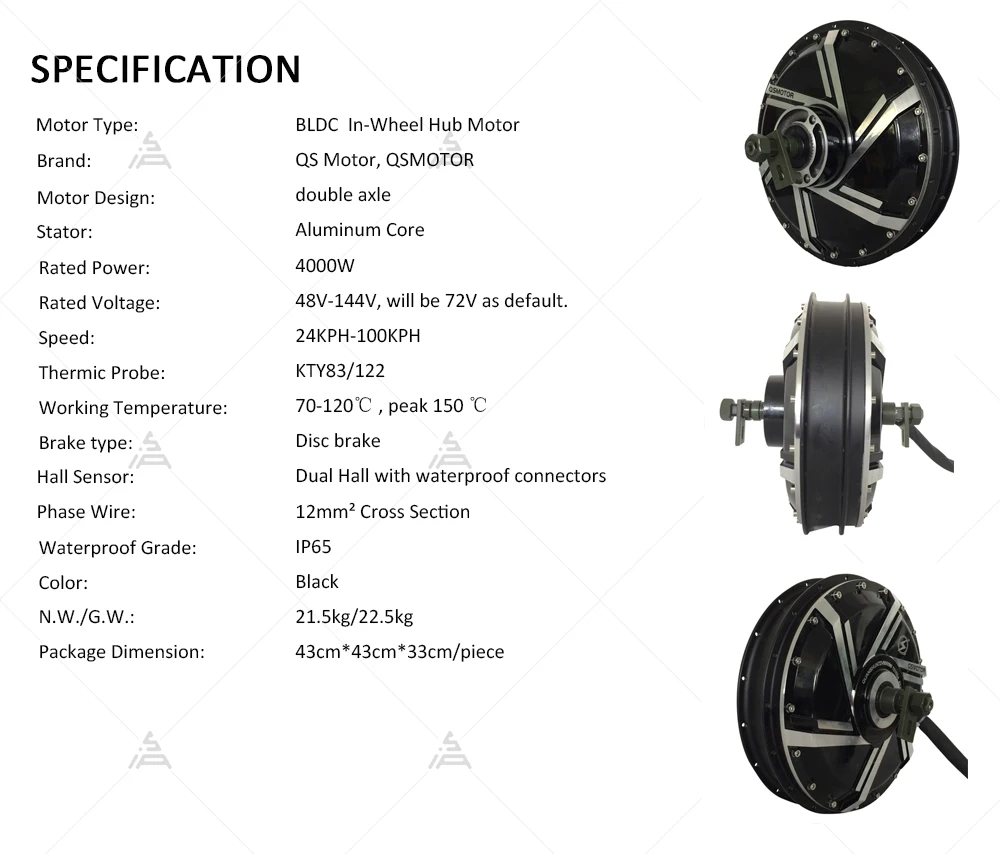

• Manufacturer rated: 4 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

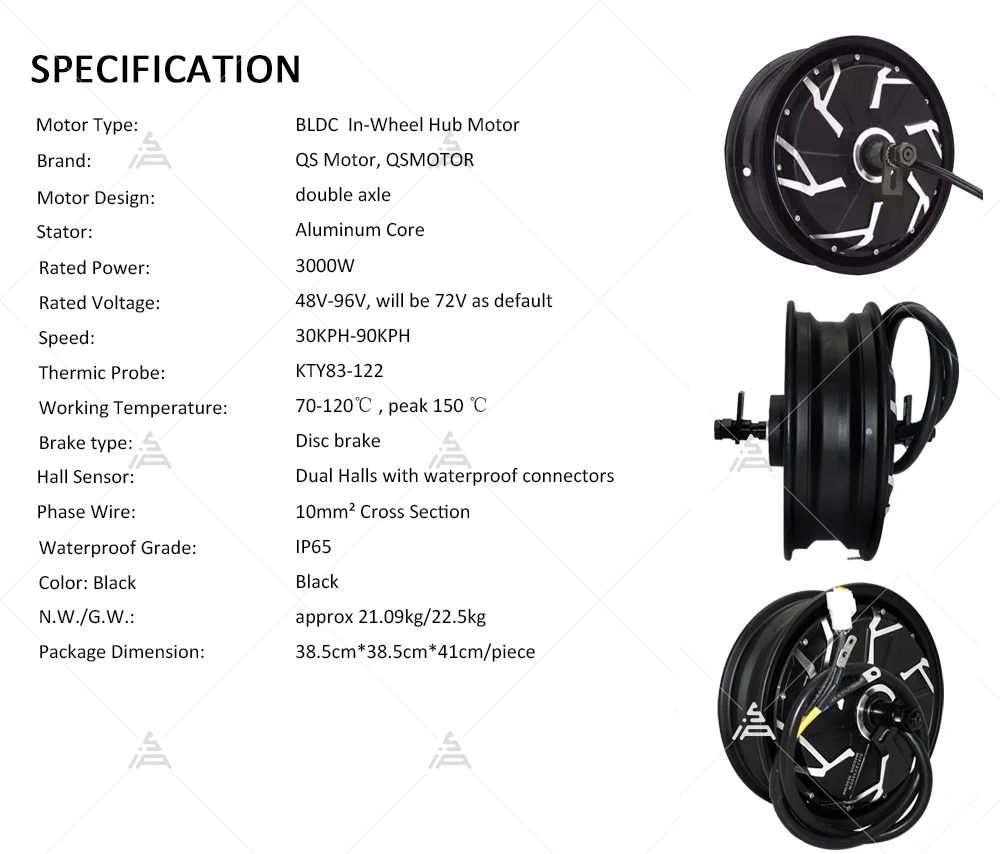

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

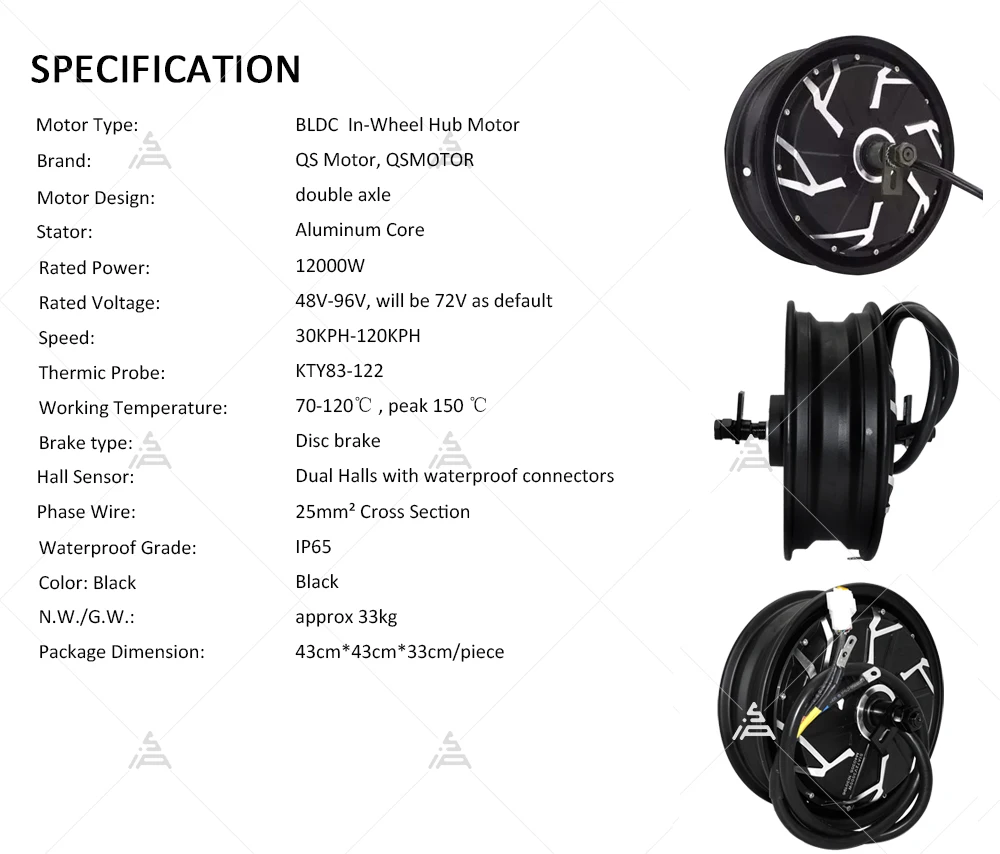

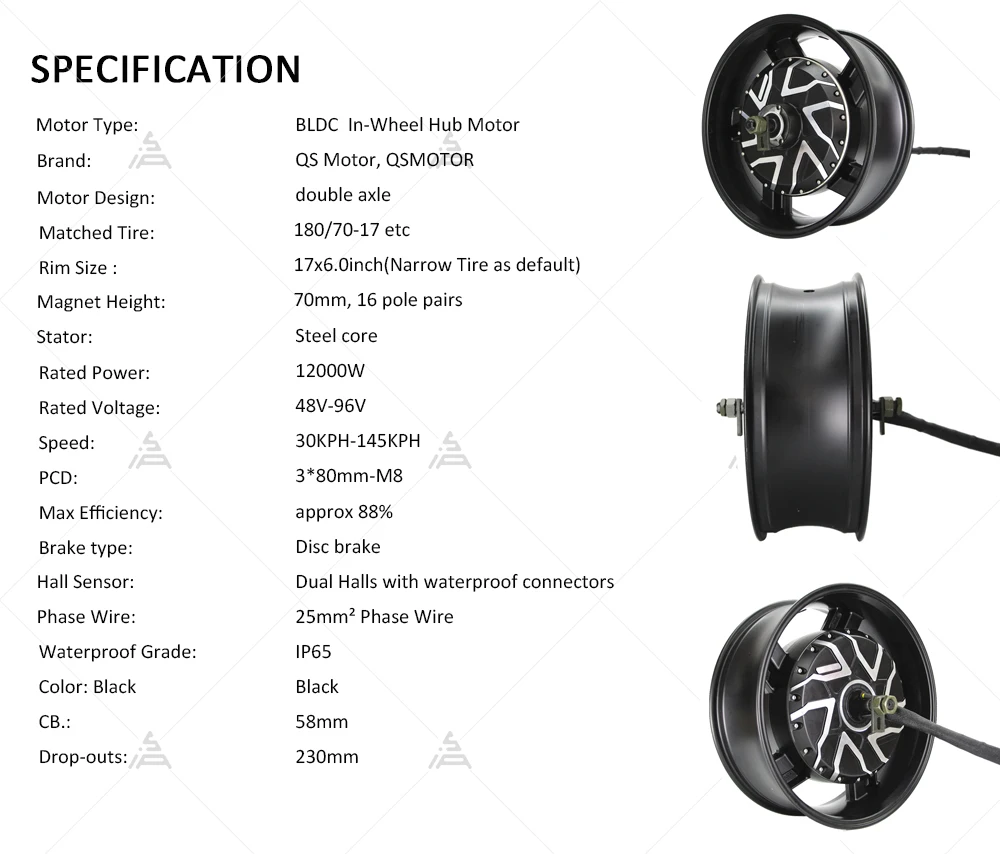

• Manufacturer rated: 12 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

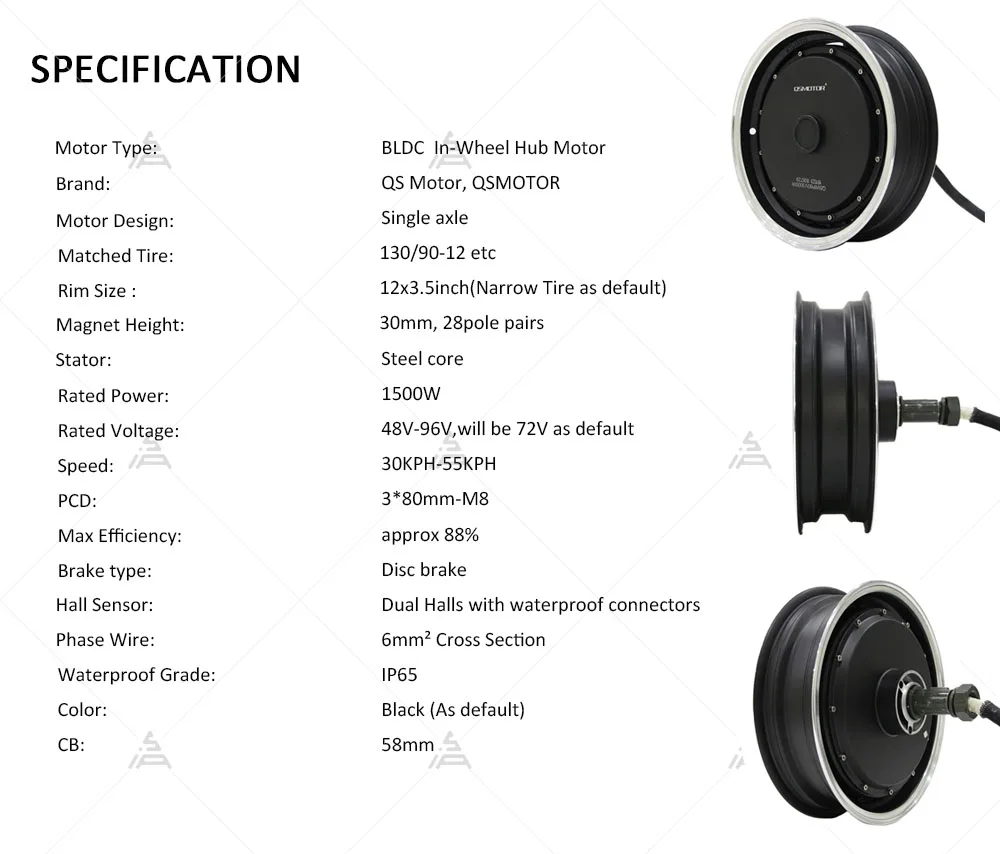

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 48 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

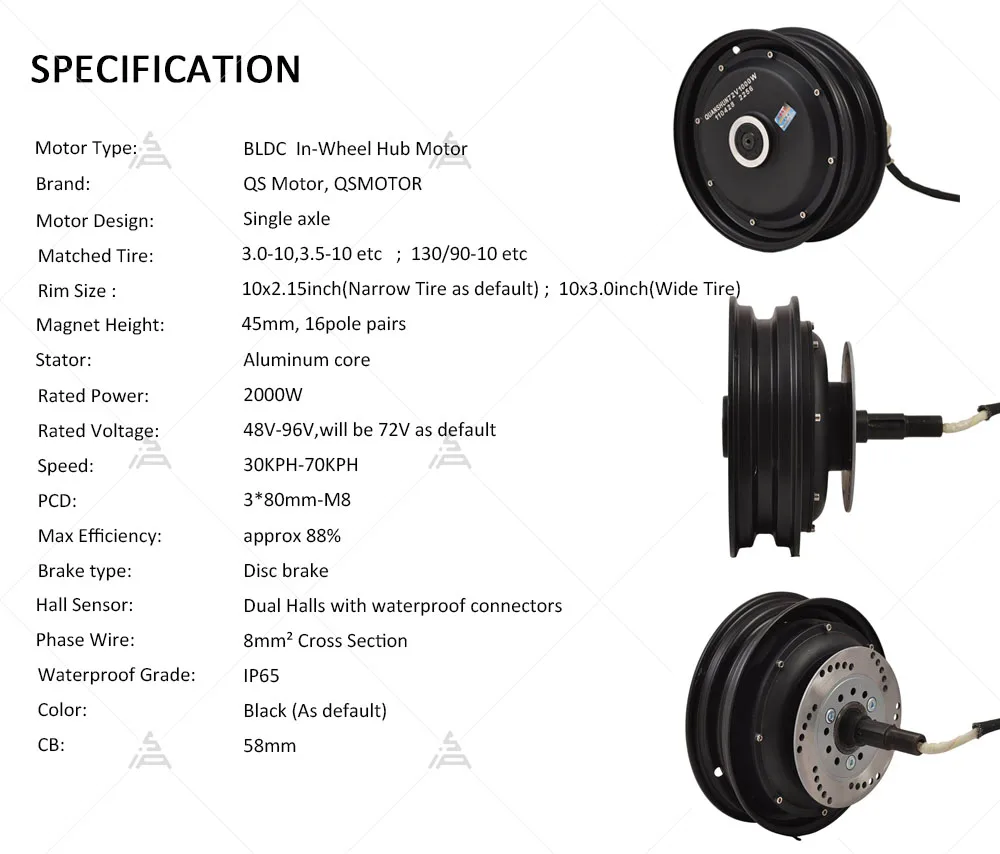

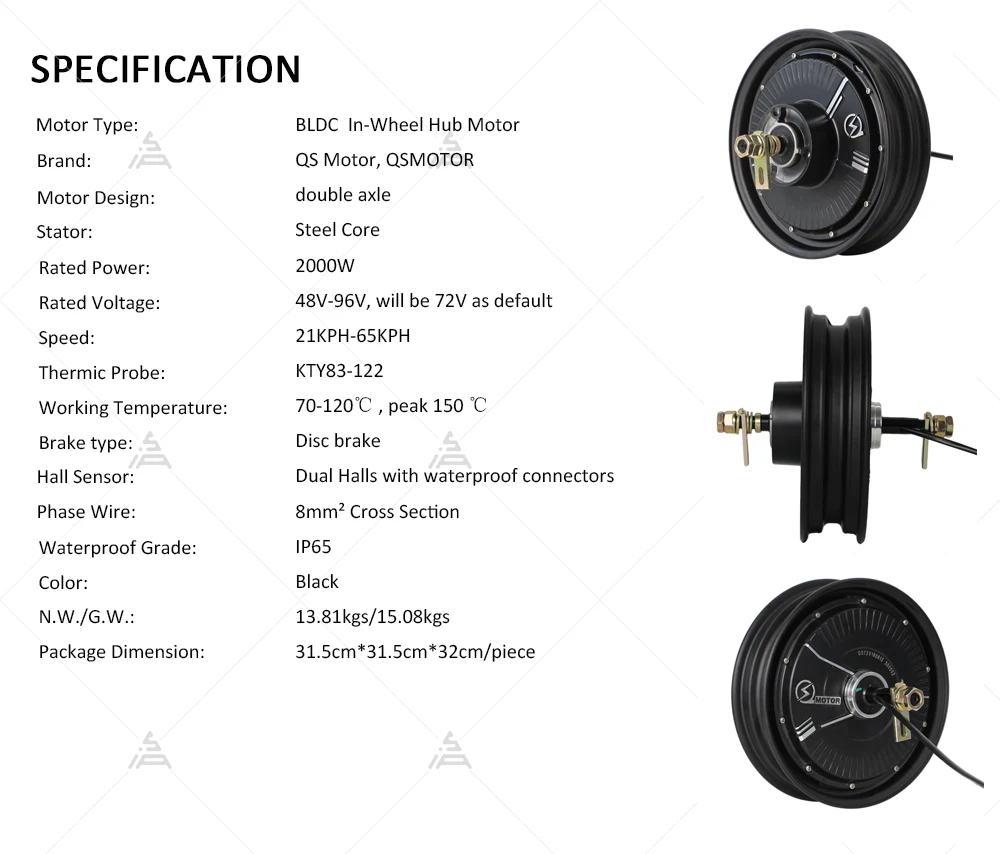

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

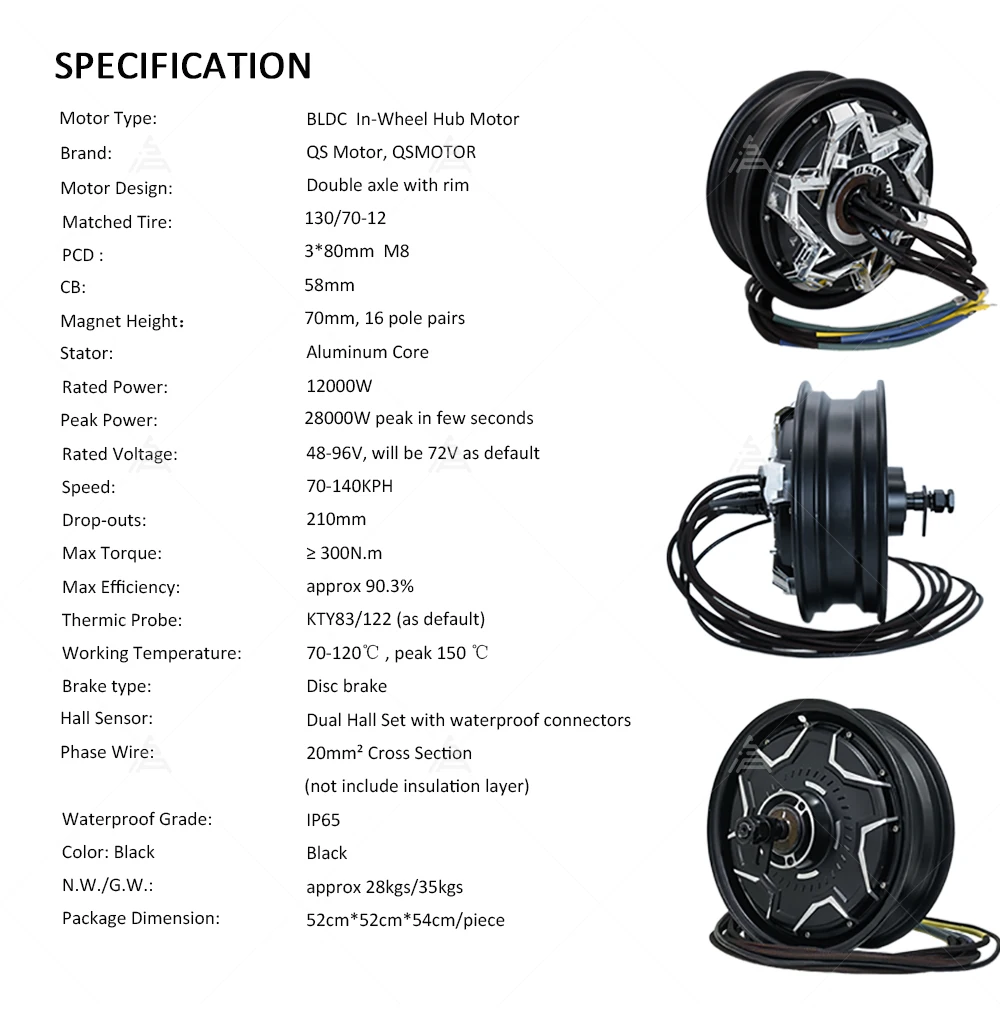

• Manufacturer rated: 12 kW
• Peak: 28 kWfew seconds

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Manufacturer listing

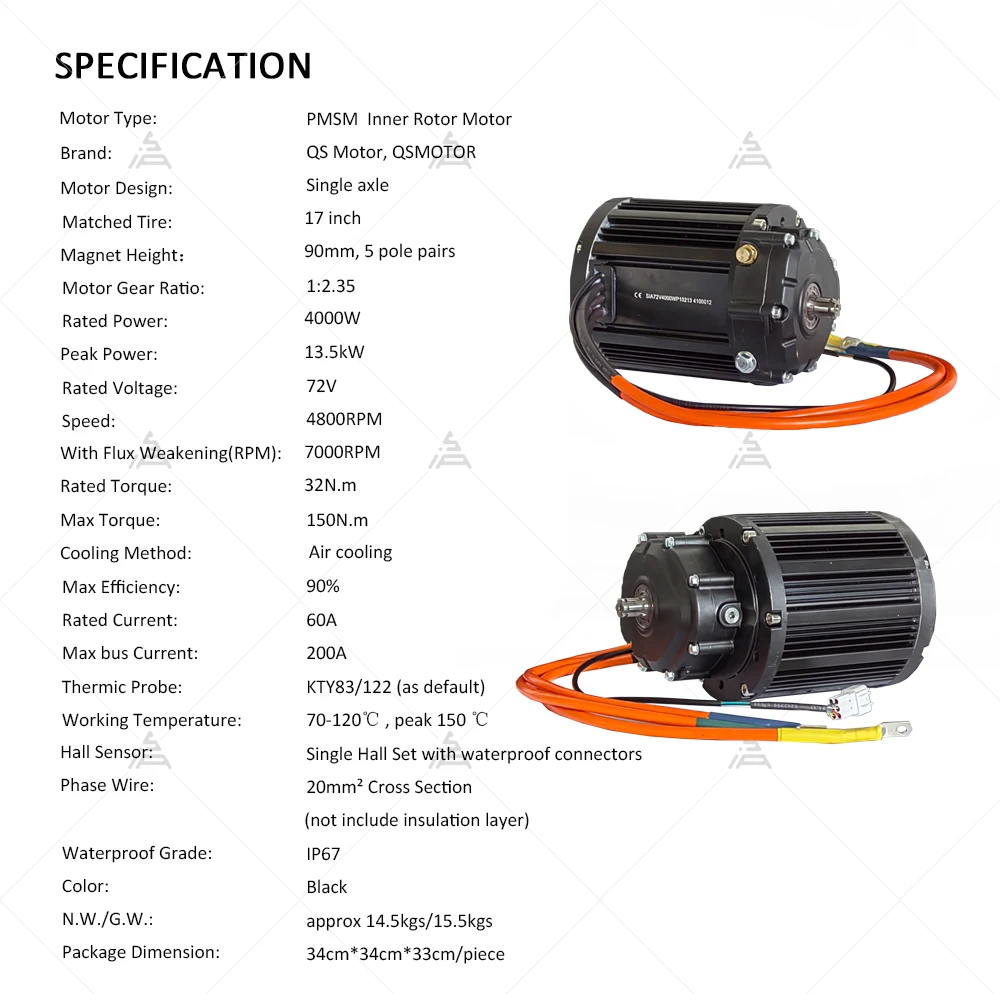

138 Motor QSD138D-90 72V 7500W Mid Drive Motor

Published power

• Manufacturer rated: 4 kW
• Peak: 13.5 kW
• Continuous: 7.5 kWMaximum continuous

Published speed

• Speed (rating not specified): 4,000 RPMShaft reference not specified · Load/rating basis not stated
• Speed (rating not specified): 6,500 RPMShaft reference not specified · Flux weakening; load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 72 VMotor specification
• Maximum current: 200 AController DC input · Current amplitude convention not specified · Published motor-table value; identify applicable controller, voltage and operating conditions before use.
• Rated current: 89 Aambiguous — do not use · Circuit not specified · Current amplitude convention not specified · Published motor-table value; identify applicable controller, voltage and operating conditions before use.

Limitations

• Liquid-cooled version; table explicitly distinguishes 4 kW rated and 7.5 kW maximum continuous.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

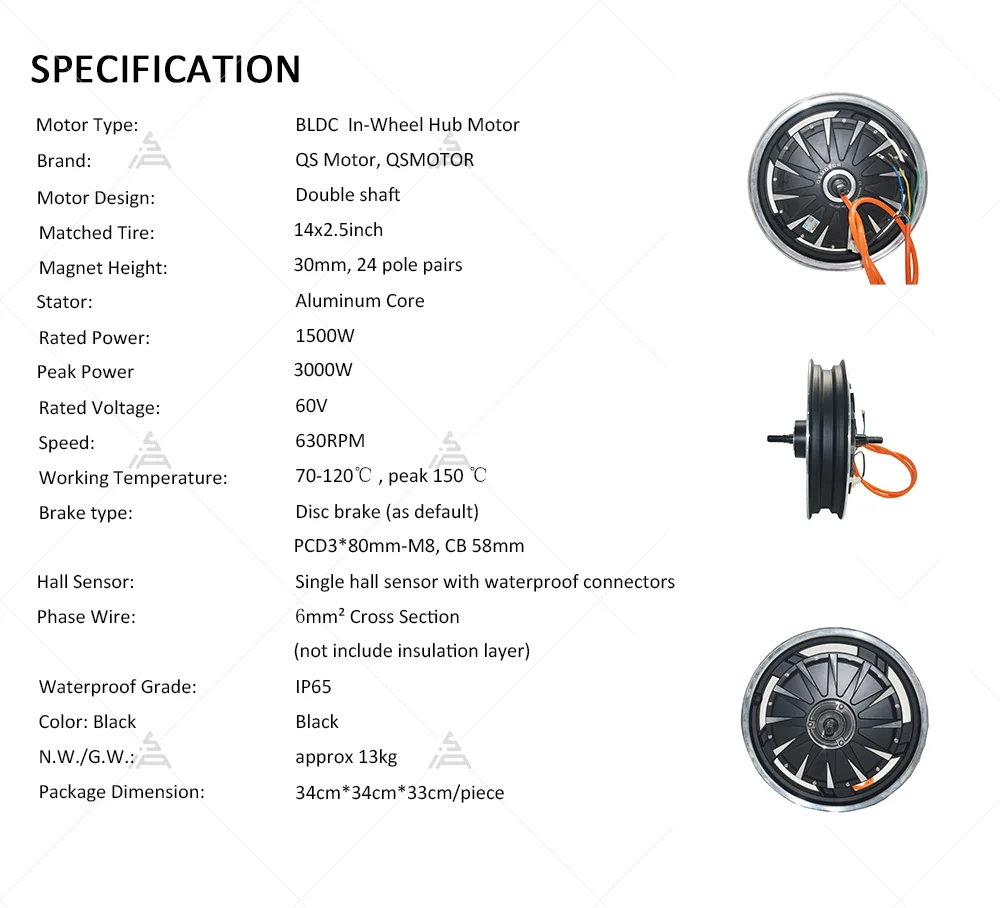

Published power

• Manufacturer rated: 1.5 kW
• Peak: 3 kW

Published speed

• Speed (rating not specified): 630 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Not published

Voltage, current and drivetrain

• Motor rated voltage: 60 VMotor specification

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 8 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 4 kW
• Peak: 8 kW

Published speed

• No-load: 890 RPM (motor rotor)

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Maximum no-load RPM is 890. The page states maximum continuous power has not completed laboratory testing.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 6 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Manufacturer listing

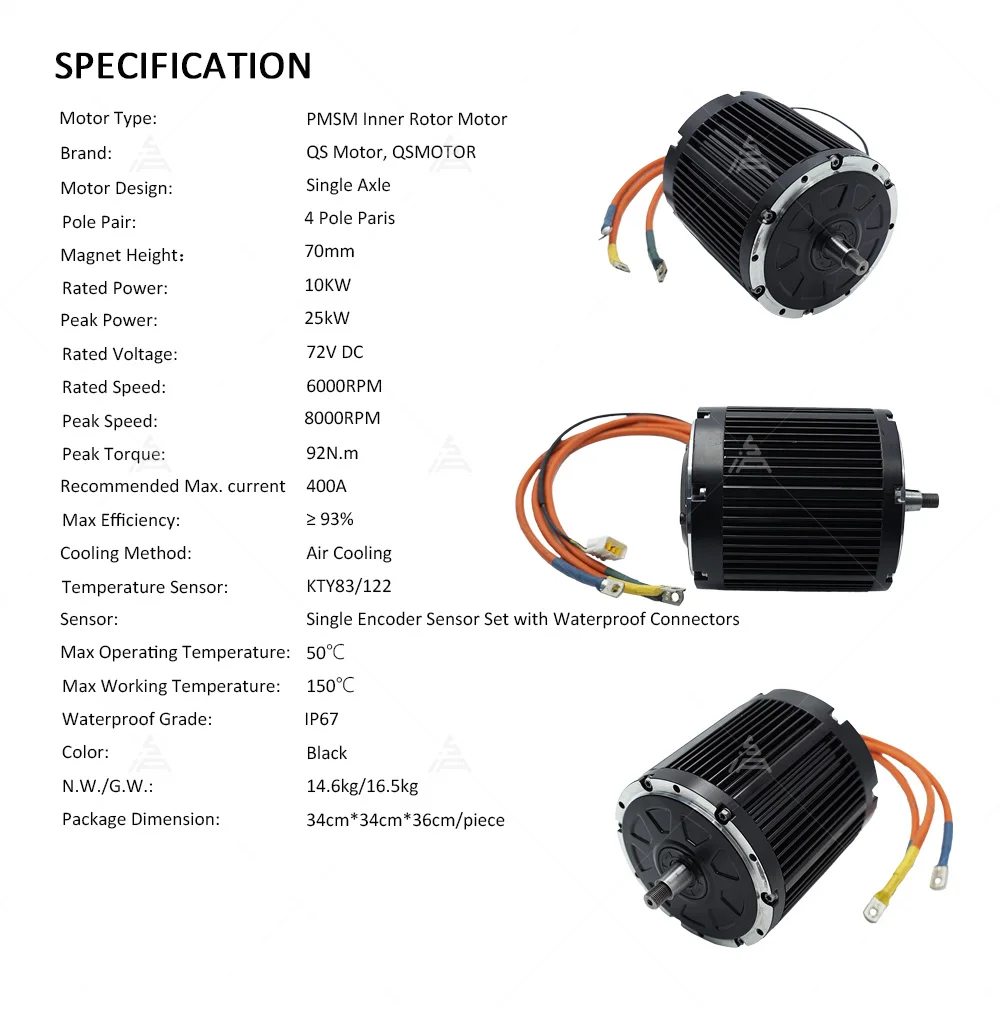

72V 10KW QSD155A-70 Hairpin Encoder Electric Mid Drive Motor

Published power

• Manufacturer rated: 10 kW
• Peak: 25 kW

Published speed

• Manufacturer rated: 6,000 RPMShaft reference not specified
• Peak: 8,000 RPMShaft reference not specified

Rotor position

• Encoder

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 72 VMotor specification

Limitations

• Recommended maximum current 400 A does not identify bus versus phase current.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kWConflicted — do not use

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Product title says 2000 W; specification image says 3000 W. Configuration mismatch remains unresolved.
• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.
• Title and specification image describe different configurations; no automatic setup facts are available until the configuration is resolved.

Published power

• Manufacturer rated: 800 W
• Peak: 2 kW

Published speed

• Speed (rating not specified): 540 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Not published

Voltage, current and drivetrain

• Motor rated voltage: 60 VMotor specification

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1 kW
• Peak: 2 kW

Published speed

• Speed (rating not specified): 550 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: Working voltage 48–72 V; 48 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

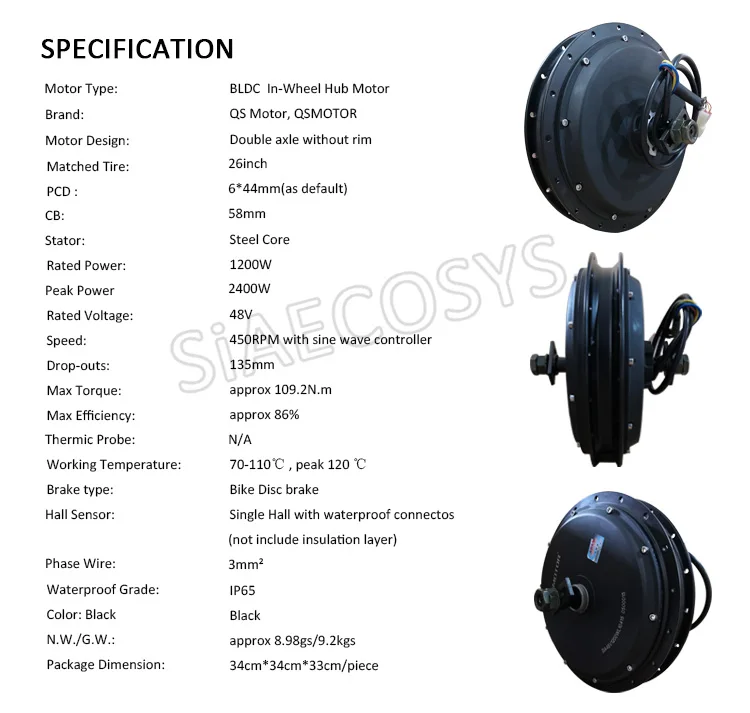

Published power

• Manufacturer rated: 1.2 kW
• Peak: 2.4 kW

Published speed

• Speed (rating not specified): 450 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Not published

Voltage, current and drivetrain

• Motor rated voltage: 48 VMotor specification

Limitations

• Thermic probe is explicitly N/A; do not infer a fitted sensor.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: Working voltage 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: Working voltage 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 4 kW
• Peak: 12 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• The second power line says Rated Power peak; retain 12 kW as peak, not rated.
• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Manufacturer listing

E Dirt Bike Motor QSJ155A-36 72V 5000W Hairpin Mid Drive Motor with Gearbox

Published power

• Manufacturer rated: 5 kW
• Peak: 12.5 kW

Published speed

• Manufacturer rated: 2,075 RPMShaft reference not specified
• Peak: 2,720 RPMShaft reference not specified

Rotor position

• Encoder

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 72 VMotor specification
• Internal reduction: 2.94:1Motor rotor to output shaft

Limitations

• Rated and peak speed say on shaft on a geared motor; the image does not explicitly identify rotor versus gearbox output. Do not use as a controller rotor-RPM preset.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 4 kW
• Peak: 8 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 6 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–144 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Speed (rating not specified): 396 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 48 VMotor specification

Limitations

• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW
• Peak: 10 kW

Published speed

• Speed (rating not specified): 1,240 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 96 VMotor specification

Limitations

• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: Working voltage 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: Working voltage 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 6 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 8 kW
• Peak: 23 kWfew seconds

Published speed

• Speed (rating not specified): 1,690 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 96 VMotor specification
• Continuous current: 83 ABattery current · Current amplitude convention not specified · Published motor-table value; identify applicable controller, voltage and operating conditions before use.
• Peak current: 254 ABattery current · Current amplitude convention not specified · Published motor-table value; identify applicable controller, voltage and operating conditions before use.

Limitations

• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1 kW

Published speed

• Speed (rating not specified): 540 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Not published

Voltage, current and drivetrain

• Motor rated voltage: 60 VMotor specification

Limitations

• Thermic probe is explicitly N/A.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: Working voltage 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 6 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW
• Peak: 6 kW

Published speed

• Speed (rating not specified): 760 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 72 VMotor specification

Limitations

• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 8 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 4 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Manufacturer listing

Mid Drive Electric Motor QSD138A-100 6000W 72V High Power Motor

Published power

• Manufacturer rated: 6 kW
• Peak: 20 kW

Published speed

• Manufacturer rated: 6,000 RPMShaft reference not specified
• Peak: 8,000 RPMShaft reference not specified

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 72 VMotor specification

Limitations

• Recommended max current is printed 350 A / 1200 A without identifying bus and phase values.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 4 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122 · optional

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.2 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• No exact pole-pair count established for this listing. It is reference-only and cannot supply a controller pole-pair setting.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–120 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 1.5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Speed (rating not specified): 950 RPMShaft reference not specified · Load/rating basis not stated

Rotor position

• Hall sensors

Temperature sensing

• Silicon PTC · KTY83-122

Voltage, current and drivetrain

• Motor rated voltage: 72 VMotor specification

Limitations

• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 5 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V; 72 V default. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Manufacturer rated: 3 kW

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Voltage as published: 48–96 V. Match the ordered voltage/winding option.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.

Published power

• Not published

Published speed

• Not published

Rotor position

• Hall sensors

Temperature sensing

• Not published

Limitations

• Height and power option lists do not explicitly pair their entries; require selected configuration before applying facts.
• Voltage as published: Working voltage 48–96 V. Match the ordered voltage/winding option.
• Rated-power options: [3000, 6000, 9000] W; the source does not map these to the magnet-height options [40, 50, 60] mm.
• Specifications apply to the configuration in this source. Confirm the fitted motor version, winding and sensor option.
